Denali D3 LED Driving Light with DataDim™ Technology

Our new D3 LED lights are built upon a decade of DENALI innovation to deliver the highest performing 36-watt street-legal driving light to hit the market. Our D3 driving light features our signature TriOptic™ beam system that includes a spot and hybrid driving lens with each light pod. Unlike previous TriOptic™ lights, the D3 hybrid driving beam is ECE and SAE compliant to deliver an impressive street-legal high beam in North America and European Union countries. But what if you're not concerned with street-legal precision and just want off-road outrageous? We got you covered too! The D3 spot lens was engineered for maximum beam distance measuring over 1900 feet at 1 lux (per pair). No other 36-watt light even comes close. The spot beam is so impressive it actually outperforms top-tier competitor's lights that are twice its size.

Our D3 is also available in an SAE & ECE certified fog beam for drivers seeking a true street-legal fog beam that is super wide and features a crisp horizontal "cut-off". SHOP D3 FOG

Features
TriOptic™ Lens System (includes spot and hybrid lenses with each pod)
Best in class street-legal spot and hybrid beams (SAE/DOT & ECE certified)
High-Intensity Series Cree LEDs outputting 2100 lumens per pod
DataDim™ 3-wire smart-dimming technology (compatible with all DENALI dimming controllers)
DrySeal™ Submersible Waterproof light can withstand the most extreme environments
Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.

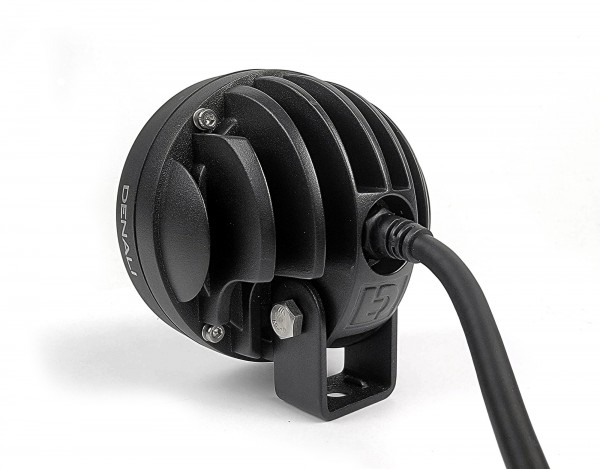

LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
Low profile mounting bracket with stainless steel hardware included
Additional SAE/DOT & ECE certified hybrid driving lens included (spot lens installed)
Amber & Selective Yellow lenses available (sold separately)

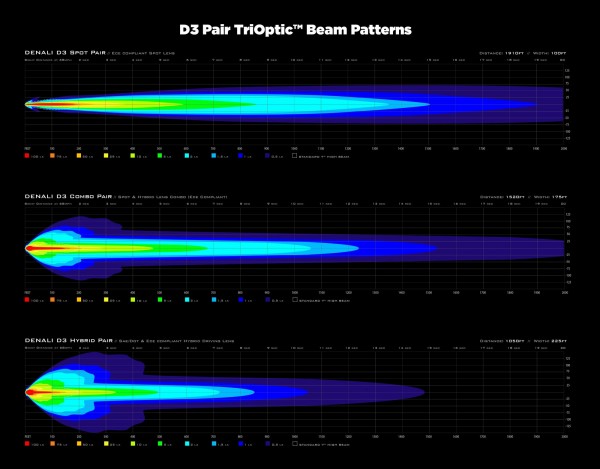

Beam Performance (pair)
Spot Beam
Beam Distance (at 1 lux): 1910 feet (582 meters)
Beam Width (at 1 lux): 100 feet (30 meters)

Combo Beam (1 spot, 1 hybrid)
Beam Distance (at 1 lux): 1520 feet (463 meters)
Beam Width (at 1 lux): 175 feet (53 meters)

Hybrid Beam
Beam Distance (at 1 lux): 1050 feet (320 meters)
Beam Width (at 1 lux): 225 feet (69 meters)


Specs (single pod)

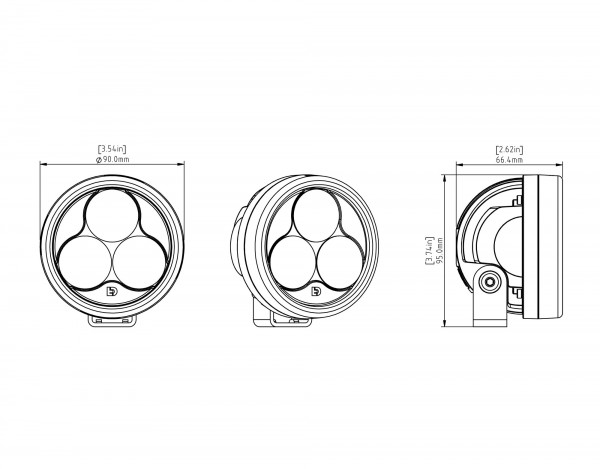

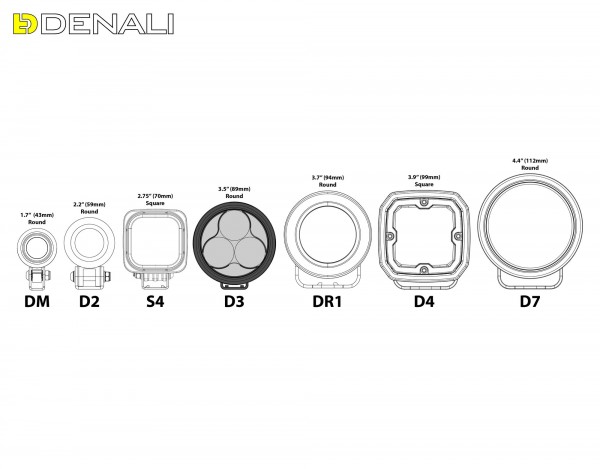

Pod Size: 3.5" (90mm) Round x 2.62" (66mm) Deep
LED: (3x) 11 Watt Cree XP-P LEDs
Power Draw: 36 Watts (3 Amps)
Lumens: 2100
DataDim™ Compatible: Yes
Operating Voltage: 9-32V DC
IP67 Waterproof & Submersible
Hybrid Lens Certifications: SAE/DOT J581 & ECE R112
Spot Lens Certifications: ECE R112

What’s in the Box?
(1x) D3 LED Light Pod (spot lens installed)
(1x) D3 Hybrid Lens
(1x) Hinge Mounts with M8 Stainless Steel Hardware
(1x) Wiring Pigtail
