Touratech Suspension shock absorber for KTM 1050ADV / 1090ADV from 2015 type Extreme

Characteristics of the Touratech Suspension Extreme shock absorber:
=> The shock absorber body is made of aluminium. This keeps its weight to a minimum.
=> All assemblies and components are designed for intense use on heavy touring motorcycles.
=> Special low-friction seals are fitted. As a result, there is very little wear and the shock absorber has a long service life.

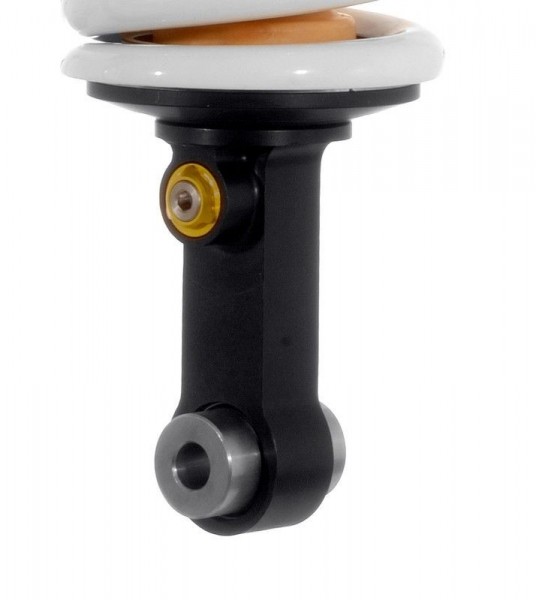

=> Strong stainless steel bushings for the securing bolts are fitted to the spring eye. They make sure the securing bolt is seated firmly with no play even under maximum loads.

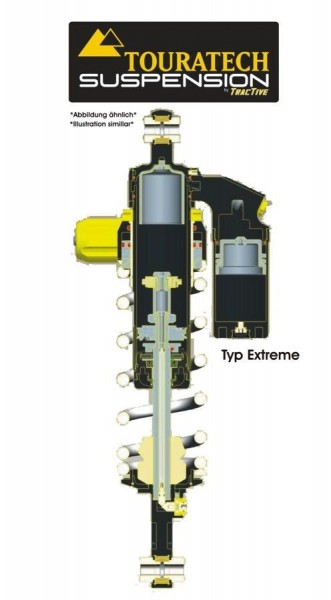

=> Floating piston design. The floating piston separates the damping fluids oil and nitrogen allowing them to work separately.
=> As a result, the shock absorber response is finer.
=> Precise, high-performance damping even with very high damping frequency (bad roads, dirt tracks).
=> Shock absorber cools better.
=> Minimal restrictions for the shock absorber's fitting position on the motorbike.

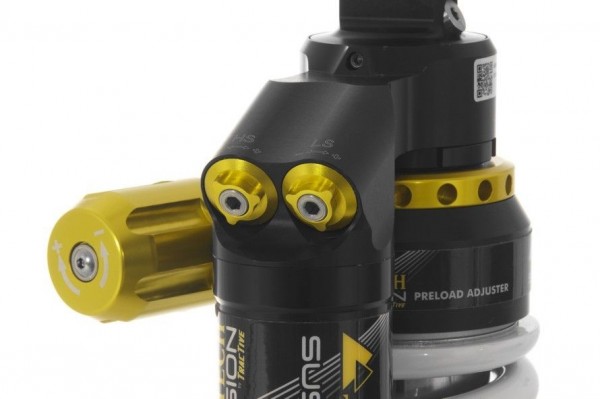

=> Hydraulic Extreme preload via an easily accessible, well positioned hand wheel.
=> The damper settings were developed in line with Touratech's experience and requirements.
=> They are based on many miles travelled and experiences gained from use by the Touratech Race Team.

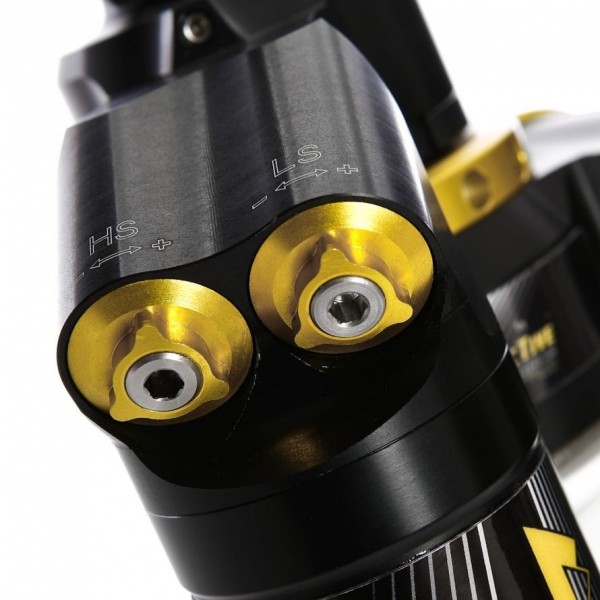

=> Extreme compression damping adjustment always has separate high speed and low speed settings.
=> This allows highly individual compression/rebound adjustment. Perfect adaptability to changing requirements.
=> Separate Extreme external reservoir in the shock absorber's damping assembly.
=> Means shock absorber system cools better when riding.
=> Gives the shock absorber greater resilience and a longer service life.
=> QR barcode on the shock absorber contains individual shock absorber data.
=> Simply scan with a smartphone to access the specific information for the shock absorber.
=> Information on the shock absorber's factory settings is always available. Can be reset if incorrectly adjusted.

The basic setup fitted here is designed for riders up to 100 kg including luggage. Modifications are possible
for a heavier rider (more than 100 kg) and/or if the bike is usually ridden with a passenger / with luggage. In this case,
we individually modify the shock absorber to meet your needs by fitting a spring with a higher spring rate.

If you have any further questions, we will be happy to advise you.
